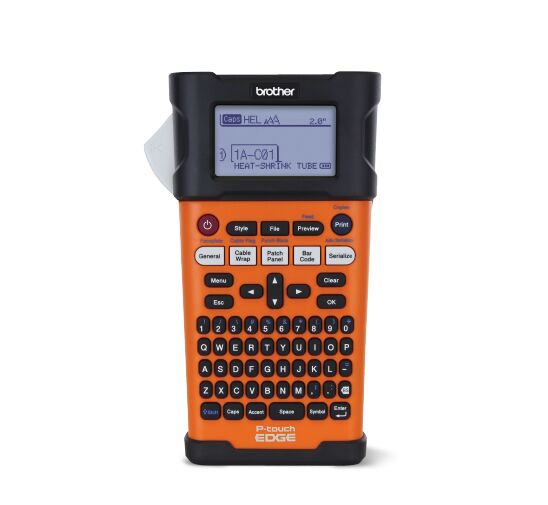

P-TOUCH EDGE 300

Handheld Industrial Laminate Label Printer with Li-ion Battery and Carry Case (up to 18mm labels)

SKU: PT-E300

The EDGE PT-E300 model comes with a hard carry case and rechargeable Li-ion battery – making it the complete labeling kit your crew needs to tackle mid-sized jobs, MAC projects, and more. Print laminated labels up to 18mm (and heat shrink tube) on demand with 5 quick application keys, built-in industrial templates and symbols, barcodes, and advanced serialization.

Heat Shrink Labels Getting Printed by Electrician

Real features

  • Label mid-sized jobs and MAC projects easily with 5 label sizes from 3.5mm to 18mm
  • Increase efficiency with 5 quick application keys for cable wrap, cable flag, patch panel, punch block and faceplate labels
  • Increase productivity with advanced alpha and numeric serialization and manual stop cut capability

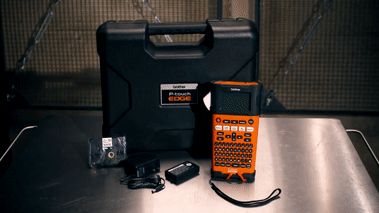

  • Hard carry case, Li-ion battery, and AC adapter included

In the box Handheld label printer, Li-ion battery pack, AC adapter, 9mm extra strength adhesive tape (8m), wrist strap, deluxe carrying case, user manual
Dimensions 5.3in x 2.8in x 8.8in (134.6mm x 71.1mm x 223.5mm)
Weight Without tape and battery: 1.7lbs (0.8kg)
Memory Up to 50 label designs (2,400 characters)
Control panel 64 keys (QWERTY)
16 characters x 2 rows LCD and backlight
Operating temperature / humidity 50° F to 95° F (10° C to 35° C), 20% to 80% non-condensing
Storage temperature / humidity -4° F to 140° F (-20° C to 60° C), 20% to 80% non-condensing
Warranty 2 Year Limited Exchange Warranty

Power AC Adapter (12VDC, 2A)
Battery Rechargeable Li-ion battery, Alkaline 6 AA (optional), Ni-MH 6 AA (optional)
Battery yield 12 tapes on one charge
Battery charging options AC adapter
Battery charging time 6 hours
Print technology Laminating thermal transfer
Resolution 180dpi
Max print speed Up to 0.78ips via AC adapter or battery
Max print width 0.62in (15.8mm)
Max print length 39.37in (1m)

Linear barcodes Code39, Code128, I-2/5 (ITF), UPC-A/E, EAN-8/13, GS1-128 (UCC/EAN-128), Codabar (NW-7)
Fonts Helsinki, Brussels, Los Angeles, Atlanta, Adams, Sofia, Letter Gothic
Function keys General, faceplate, cable wrap, cable flag, patch panel, punch block, barcode, serialize (standard, advanced)
Keyboard QWERTY, mini size rubber (64 keys)
Print capabilities Up to 16 alpha-numeric characters, up to 50 alpha-numeric character increments (individual or simultaneous), auto formats (faceplate, cable crap, cable flag, patch panel, punch block), 386 symbols, text insert, multi-block up to 9, 20 languages
Print layout Print preview, up to 5 lines per label, 10 type styles, 8 type sizes, 4 type widths, vertical printing, repeat printing up to 50 copies

Cutter Manual with cut / pause
Media sensors Smart Identification
Media type HGe, TZe, HSe, STe
Media loading Cartridge
Media sizes 18mm, 12mm, 9mm, 6mm, 3.5mm
Media width 18mm (0.7in) max
Max print height 0.62in (15.8mm)
