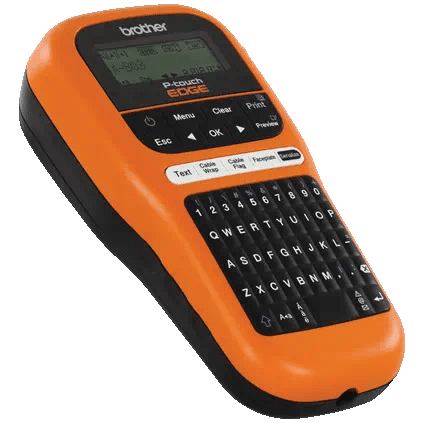

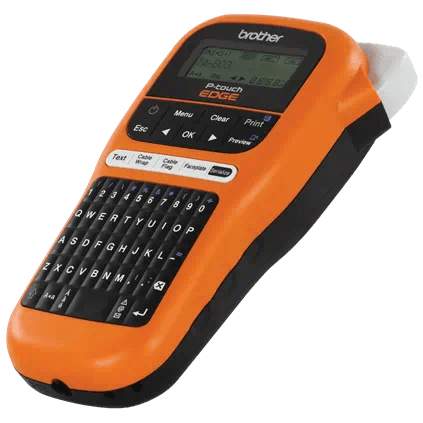

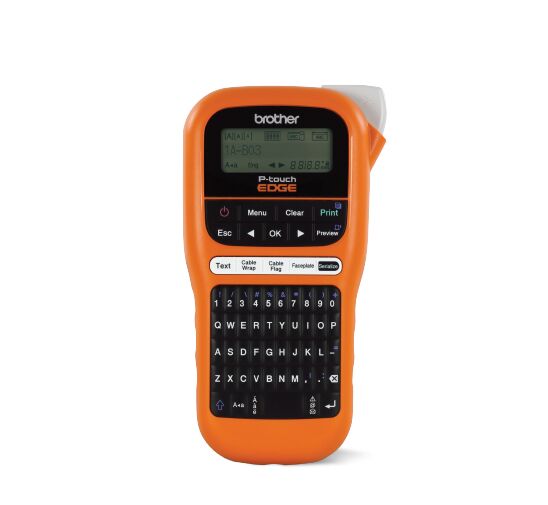

P-TOUCH EDGE 110
Entry-level Handheld Industrial Laminate Label Printer (up to 12mm labels)
SKU: PT-E110
The perfect printer for your everyday tool bag. The EDGE PT-E110 lets you produce high-quality laminated labels in seconds, without ever reading a manual. Featuring simple menus, a full QWERTY keyboard, and 3 quick application keys, this compact printer makes it easy to create clear, accurate labels on demand for your small jobs. Its grab and go industrial labeling at the right price.
Real features
- Label small jobs easily with 4 label sizes from 3.5mm to 12mm wide
- Increase efficiency with 3 quick application keys for cable wrap, cable flag and faceplate labels

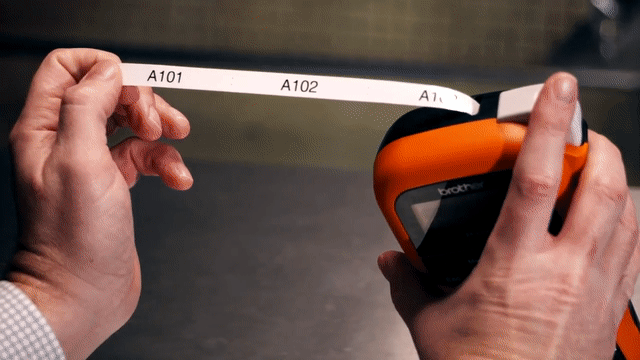

- Print strips of serialized labels and hand cut
- Hard carry case and safety wrist strap included
- Requires AAA batteries (not included)
| In the box | Handheld label printer, carry case, wrist strap, 9mm flexible ID tape (8m) |
| Dimensions | 4.3in x 2.2in x 8.0in (109.2mm x 55.9mm x 203.2mm) |
| Weight | Without tape and batteries: 0.9lbs (0.4kg) |
| Memory | Up to 9 label designs (720 characters) |
| Control panel | 60 keys (QWERTY) 15 characters x 1 row LCD |
| Operating temperature / humidity | 50° F to 95° F (10° C to 35° C), 20% to 80% non-condensing |
| Storage temperature / humidity | -4° F to 140° F (-20° C to 60° C), 20% to 80% non-condensing |
| Warranty | 2 Year Limited Exchange Warranty |
| Power | Optional AC adapter (9VDC, 1.6A) |
| Battery | Alkaline 6 AAA (optional), Ni-MH 6 AAA (optional) |
| Battery yield | 12 tapes on one charge |
| Battery charging time | 6 hours |
| Print technology | Laminating thermal transfer |
| Resolution | 180dpi |
| Max print speed | Up to 0.78ips via AC adapter or battery |
| Max print width | 0.35in (8.9mm) |
| Max print length | 39.37in (1m) |
| Fonts | Helsinki |
| Function keys | Text, cable wrap, cable flag, faceplate, serialize (standard) |
| Keyboard | QWERTY, mini size rubber (60 keys) |
| Print capabilities | Up to 7 alpha-numeric characters, up to 50 alpha-numeric character increments, auto formats (cable wrap, cable flag, faceplate), 200 symbols, 20 languages |
| Print layout | Print preview, up to 2 lines per label, 10 type styles, 3 type sizes, 3 type widths, vertical printing, repeat printing up to 9 copies |
| Cutter | Manual with user replaceable cutter |
| Media sensors | Smart Identification |
| Media type | HGe, TZe |
| Media loading | Cartridge |
| Media sizes | 12mm, 9mm, 6mm, 3.5mm |
| Media width | 12mm (0.47in) max |
| Max print height | 0.35in (8.9mm) |
