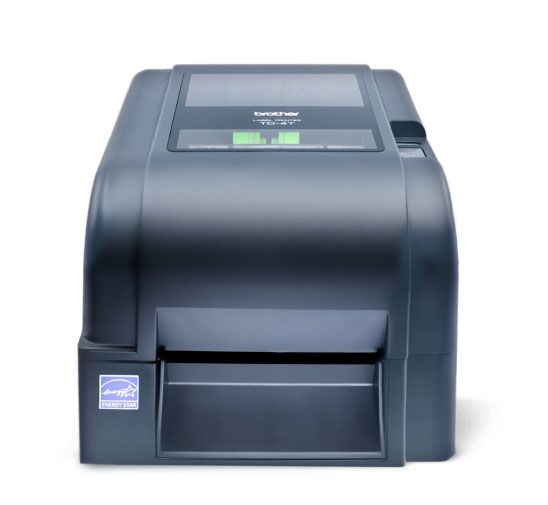

TD 4520TN

High-Resolution 4-Inch Thermal Transfer Desktop Printer with USB and Network Capability

SKU: TD-4520TN

Featuring 300dpi print resolution and thermal transfer print technology, the TD-4520TN desktop printer lets you print top-quality 4-inch labels. Ideal for short-run manufacturing product labels, this printer can be shared easily between multiple PCs and managed remotely via network connectivity.

TD 4 Printer Sitting on Warehouse Shelf Printing Shipping Labels

Real Features

  • Print 4-inch manufacturing product labels and tags with up to 5 inches per second print speed to increase efficiency
  • 300dpi thermal transfer print technology for top quality
  • Connect easily with Ethernet LAN (10/100Base-TX), USB 2.0, Host USB, and RS-232C Serial interfaces
  • Increase productivity with optional peeler and cutter accessories
  • Integrate seamlessly with industry-leading WMS systems, connect to mobile devices, and print directly from within the SAP® Printer Vendor program
  • Windows®, Mac OS®, Linux, Android, and Apple iOS® compatibility
  • Make media replacement fast and simple with drop-in spindle-less design
  • Print barcodes like a pro with support for major linear and 2D barcode symbologies, plus Seagull BarTender UltraLite Design/Print Software

In the box Printer, AC adapter, power cord, USB cable, ribbon take-up 1in core, ribbon spindle (2 pieces), documents (Quick Start Guide, Safety Guide)
Dimensions 8.0in x 7.0in x 11.0in (204mm x 178mm x 280mm)
Weight 5.51lbs (2499g)
Memory 64MB DRAM / 128MB Flash
Control panel 1 LED with 1 button
Real time clock Standard (optional coin cell battery)
Audio device Standard
Operating temperature / humidity 41° F to 104° F (5° C to 40° C), 25% to 85% non-condensing
Storage temperature / humidity -40° F to 140° F (-40° C to 60° C), 10% to 90%
Warranty 2 Years Premier Limited Warranty

Power External AC Adapter (Input: 100-240V AC 50/60Hz 2.0A, Output: 24V DC 5A)
Energy conservation certifications Energy Star
Print technology Thermal transfer / Direct thermal
Resolution 300dpi
Max print speed Up to 6ips
Max print width 4.25in (108mm)
Max print length 450in (11,430mm)

Communications interfaces Ethernet LAN (10/100Base-TX), USB 2.0, Host-USB, RS232C Serial
OS compatibility Windows®, Mac OS® 10.12.x or Higher, OS X®, Linux
For the most up-to-date compatibility, visit our Support Page
OS printing Windows®, MAC®, Linux
Print driver compatibility Windows®, Mac®, Linux
For the most up-to-date compatibility, visit our Support Page
SDK support Windows®
Support software Seagull BarTender UltraLite Design/Print Software Application
Apps Support Center

Printer languages ZPLII , EPL2, DPL , FBPL
Emulations FBPL-EZD (ZPL II, EPL2, DPL)
Linear barcodes Code 11 (USD-8), Code 39, Code 93, Code 128 with subsets A/B/C, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2- or 5-digit extensions, GS1-128 (UCC/EAN-128), MSI Plessey, POSTNET, Standard 2-of-5 (IATA), Industrial 2-of-5, Interleaved 2-of-5, ITF-14, EAN-14, LOGMARS, Codabar (NW-7), Planet, Telepen, Deutsche Post Identcode, Deutsche Post Leitcode, Datalogic 2-of-5 (China Post)
2D barcodes CODABLOCK F, PDF417, Code 49, GS1 DataMatrix, MaxiCode, QR Code, TLC39, MicroPDF417, GS1 DataBar (RSS), Aztec Code
Fonts 8 alpha-numeric bitmap fonts for FBPL, Monotype Image® true type font engine with one CG Triumvirate Bold Condensed scalable font

Cutter Optional
Media sensors Transmissive (gap), full width moveable reflective (black mark), optional peeler
Media type Roll or fanfold, die cut or continuous, label, receipt, tag, and wristband
Media loading Drop-in spindle-less design rear feed (external roll and fanfold)
Media roll diameter 5.00in (127mm)
Media inner core diameter 1in (25.4mm) or 1.5in (38.1mm)
Media width 4.41in (112mm)
Max media thickness 7.48mil (0.19mm)
Ribbon types Wax, resin, semi (wax / resin)
Ribbon length 984ft (300m) per roll, 2.64in (67mm) outer diameter on 1in (25.4mm) core
361ft (110m) per roll, 1.57in(40mm) outer diameter on 0.5in (12.7mm) core
Ribbon width 4.33in to 1.57in (110mm to 40mm), widths less than 4.33in (110mm) require included ribbon spindle
Ribbon take up core 4.33in (110mm) / 1in (25.4mm) or 0.5in (12.7mm) core w/ 2 notches, 1in core without notches requires included ribbon spindle
