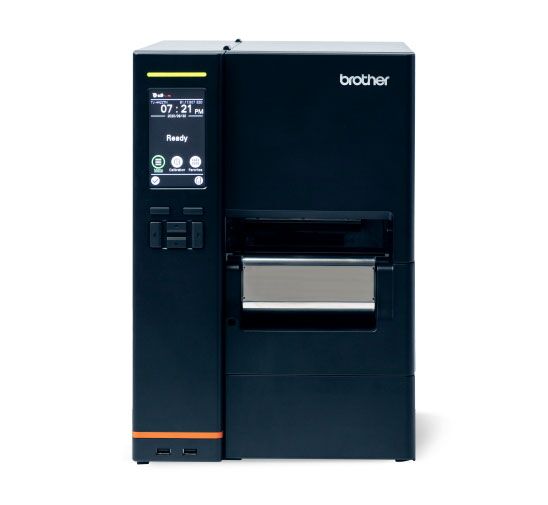

BROTHER TITAN INDUSTRIAL PRINTER 4422TN

Ultra-fast, High-volume Barcode Label Printer with Internal Label Rewinder and LCD Display

SKU: TJ-4422TN

With lightning-fast print speeds up to 14 inches per second1 and a built-in label rewinder, the Brother Titan Industrial Printer model TJ-4422TN is perfect for high-volume shipping label jobs and batch printing of product labels. The enhanced functionality of the internal automatic rewinder not only improves efficiency and safety in the workplace, but also lets you produce neat rolls of printed labels to store or use as needed. And the LCD display makes printer setup and selections easy.

Shipping Labels Being Peeled After Printed from Brother Titan Industrial Printer

Real features

  • Print barcode labels, shipping labels, product labels, and more at up to 14 inches per second1 print speed
  • 203dpi thermal print technology for the highest possible resolution and readability
  • Stay printing longer with up to 600m ribbon capacity
  • Save time, reduce waste, and take control with an internal automatic label rewinder
  • Ethernet/LAN, USB 2.0, Host-USB, and RS232C Serial connectivity let you share the printer between multiple users and manage remotely
  • See printer status and make selections on the fly with a bright multicolor status light and LCD display
  • Explore field upgradeable options to customize your printer including: Wi-Fi® and Bluetooth® wireless technology
  • Make integration easy with WMS and ERP compatibility and a full suite of included emulations, SDKs, and drivers
  • Get the confidence of a 2-year Premier Limited Warranty with Printhead Perks

In the box Printer, USB cable, power cord, safety guide
Dimensions 10.9in x 16.2in x 19.8in (276mm x 412mm x 502mm)
Weight 41.7lbs (18.9kg)
Memory 256MB DRAM / 512MB Flash, Optional 32GB MicroSD Card
Control panel 1 3-color status LED with 6 buttons, 3.5in HVGA color touch control panel, dual host USB interface ports
Real time clock Standard
Audio device Standard
Safety UL/cUL 62368-1
Operating temperature / humidity 32° F to 104° F (0° C to 40° C), 25% to 85% non-condensing
Storage temperature / humidity -40° F to 140° F (-40° C to 60° C), 10% to 90% non-condensing
Warranty 2 Year Premier Limited Warranty

Power Built-in power supply (100-240V AC 50/60Hz 2.0A)
Energy conservation certifications Energy Star 3.0
Print technology Direct thermal & thermal transfer
Resolution 203dpi
Max print speed Up to 14ips
Max print width 4.1in (104mm)

Communications interfaces Standard: Ethernet LAN (10/100Base-TX), USB 2.0, Host USB, RS232C Serial
Optional: Wi-Fi® WLAN (5GHz 802.11a/n, 2.4GHz 802.11b/g/n Infrastructure)
Communications security WLAN: IPv4, ARP, ICMP, UDP, TCP, RAW, DHCP Client, DHCP FQDN Option, Unicast DHCP Offer
LAN: ARP, MAC, BOOTP, DHCP, DNS, WINS, FTP Server, HTTP Server, SNTP Client, SMTP Client, SNMP V1, Telnet, LPR/LPD, RAW 9100, IPv4, ICMP, IGMP, TCP, UDP
OS compatibility Windows®, MacOS X®, macOS®, Linux
For the most up-to-date compatibility, visit our Support Page
Print driver compatibility Windows®, Mac®, Linux
For the most up-to-date compatibility, visit our Support Page
SDK support Windows®, Android 5.0 or higher, iOS® 10.0 or higher
Support software Seagull BarTender UltraLite Design/Print Software Application Brother Printer Management Software Tool

Printer languages FBPL II, ZPL II, EPL2, DPL
Emulations FBPL II, ZPL II, EPL2, DPL
Linear barcodes Code 11 (USD-8), Code 39, Code 93, Code 128 with subsets A/B/C, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2- or 5-digit extensions, GS1-128 (UCC/EAN-128), MSI Plessey, POSTNET, Standard 2-of-5 (IATA), Industrial 2-of-5, Interleaved 2-of-5, ITF-14, EAN-14, LOGMARS, Codabar (NW-7), Planet, Telepen, Deutsche Post Identcode, Deutsche Post Leitcode, Datalogic 2-of-5 (China Post)
2D barcodes CODABLOCK F, PDF417, Code 49, GS1 DataMatrix, MaxiCode, QR Code, TLC39, MicroPDF417, GS1 DataBar (RSS), Aztec Code
Fonts 8 BMP & 1 Scalable

Media sensors Transmissive (full width moveable gap), reflective (black mark), ribbon encoder and ribbon end
Media type Labels, tags, roll or fanfold, die cut, notch or continuous
Media loading Internal: 1in spindle with 3in core adapters (2 pieces)
External: rear feed (external roll and fanfold)
Media roll diameter 8.00in (203.2mm) outer diameter
Media inner core diameter Wound out 1.5in (38.1mm) or 3in (76.2mm) core inside diameter
Media width 0.79in to 4.5in (20mm to 114mm)
Max media thickness 2.36mil to 11mil (0.06mm to 0.28mm)
Ribbon types Wax, semi (wax / resin), resin
Ribbon length 1,968ft (600m) per roll, 3.5in (90mm) outer diameter, wound in/out on 1in (25.4mm) core inside diameter (no notch)
1,476ft (450m) per roll, 3.2in (81.3mm) outer diameter, wound in/out on 1in (25.4mm) core inside diameter (no notch)
984ft (300m) per roll, 2.64in (67mm) outer diameter, wound in/out on 1in (25.4mm) core inside diameter (no notch)
Ribbon width 1.0in to 4.5in (25.4mm to 114.3mm)
Ribbon take up core Ribbon quick release take up spindle, no ribbon take up core required
